The pan tilt head is a simple device with two geared DC motors and a remote control for moving the camera up and down, and from left to right in a fixed position. The remote only allows movement of one axis at a time, and the speed control is a slide potentiometer with a narrow range. It moves a bit too robotically for my liking!

My immediate goal for this project was to have control over these motors with MIDI, so I could use Ableton Live to automate motion in both axes simultaneously in a precise and predictable fashion (hopefully). This is an important requirment for a miniature music video I'll be shooting in my studio the next few weeks. I also have a 3D mouse (3DConnexion SpaceMouse Wireless) that has 6 axes of control, which struck me as being the ideal controller. Thankfully, a program called exists which converts data coming from the mouse directly to MIDI, so communication with Ableton Live is trivial.

For the bridge from computer to motion control, I used a Arduino. Having spent quite a lot time messing around with hacked USB-MIDI cables and ATMega328 chips, this thing is so easy to use. It has a native USB-MIDI mode so sending or recieving MIDI over USB is very quick to implement. Also, the Teensy is very small, so will comfortably fit into the enclosure in place of the original PCB. I'll be CNC milling a PCB to the same dimensions to securely fasten the DIN socket, Teensy, and deal with connections to the motors. Some advantages and disadvantages to taking this approach: Advantages: - precise motion control of both axes of the pan tilt head, with independent variable speed. - wider range of speeds by using 7.4V instead of 6V, and using PWM - MIDI control allows movements to be stored as MIDI Continuous Controller data in Ableton Live or other DAW - by automating the process, I'll be able to get exactly the frame I want, so will be able to concentrate more on what's in front of the camera than behind it.

Disadvantages: - bypassing on-board battery / mains power in favour of using a high capacity Li-Ion battery pack or mains means the unit will no longer be stand-alone. - the use of Pulse Width Modulation has inherent audible noise at lower speeds. While this won't be a problem as long as external mics are used, in some situations the sound could be an issue. - by hacking the unit, its resale value could be greatly reduced, but I think it'll actually be far more useful this way! More information and documentation of this hack and my motion control rig next week.

Last but not less important is your own contribution to our cause. Hot cpu tester pro 441 serial. You should consider to submit your own serial numbers or share other files with the community just as someone else helped you with Hot CPU Tester Pro 4.0.578 serial number.

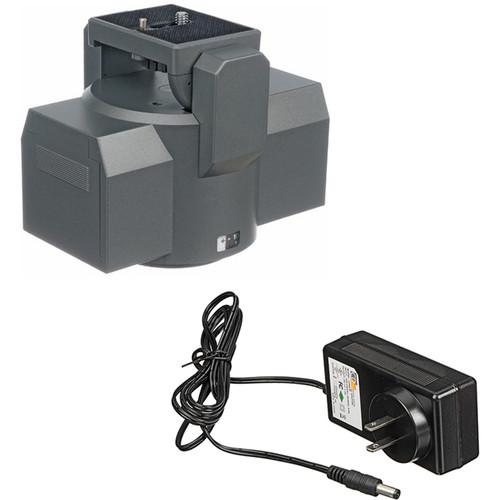

Used for remote control of video cameras, digital cameras or security cameras. This unit is very quiet. It is used in churches, on masts, aerial photography, jib arms, camera cranes, videography, law enforcement, architectural photos, etc. Two motors allow independent and simultaneous smooth adjustment of vertical tilt and horizontal panning. You can pan and tilt at the same time, you can make diagonal movements. Speed is continuously adjustable from 3 to 12 degrees per second.

Pans 180 degrees in 15 to 60 seconds. Supports cameras up to 6 lbs. Not intended for use in direct rain.

The Bescor MP-101 pan and tilt is a great cost effective solution for video and photo setups, but it has several limitations. First off, the controller only allows movement on one axis at a time. Also, the speed slider is difficult to use while panning. Aug 31, 2006 - I am curious about the Bescor. I would recommend getting or modifying the jib to do manual tilt control (I think the cobra does) and using the bescor for pan. Although the Bescor MP 101 comes with a (wired) remote control.

15 degree Vertical Tilt up and 15 degree Vertical Tilt down. 30 degree total Vertical Tilt. 170 degree Pan to the right and 170 degree Pan to the left. 340 degree total Horizontal Panning. They operate for years, have a thick plastic case, brass worm gears, no backlash, a light touch remote control.

The hand held remote control has a cable 4 foot long. Auto mode sweeps an arc of 45, 90 or 340 degrees. Uses 4 'AA' cells or 6 to 8 VDC external power supply. Size 4'W x 4.5'H x 5.75'L. Weight of motor only is 30 Oz. The top has a Standard 1/4'- 20 thread for your camera.
